Weyel Manual Column Board

Perfect Positioning

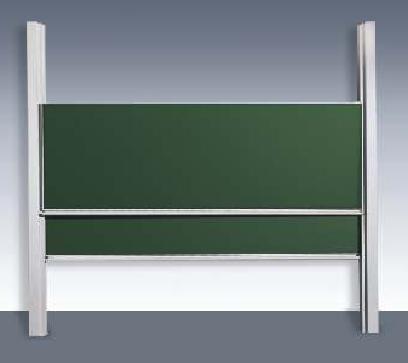

The column board is perfect for larger classrooms, training spaces and auditoriums because it provides a continuous writing surface on which you can present information across the whole width in a simple manner. In case of multiple positioning the boards can be moved in a vertical direction, independently and in a continuously variable manner. In this way the construction allows for an adjustable projection screen, providing the entire audience with razor-sharp images. The magnetic writing surfaces are available in white for dry-marker pens and in green for chalk. Weyel will be pleased to adjust the surfaces and the dimensions of the (maintenance-free) column system accurately to your particular space, allowing you to enjoy years of maximum freedom of movement, permanent convenience as well as efficient knowledge transfer.

Writing surfaces
Steel green and steel white.

Board height
1.000 and 1.200 mm.

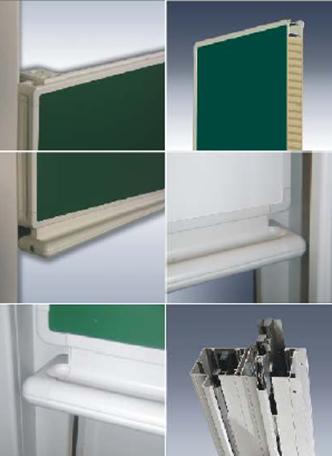

Writing surfaces with stove-enameled aluminum sections and plastic corners are sealed against water penetration when washed down. Chalk shelf and dust tray are also of stove-enameled aluminum sections with rounded plastic caps.

Standard type
One or two writing surfaces. More writing surfaces available on demand.

Sliding range
Over the length of the columns; minus 120 mm lower stop and 200 mm upper stop.

Sliding mechanism
Maintenance-free precision section guide tracks with spring stops at the travel limits.

Columns
Stove-enameled aluminum sections.

Color
White-grey, U 1130.

Projection screen
See separate pages
